LY 820 CNC Automatic Coil Winder Winding Machine Wire 0.2-3.0mm

LY 820 750W CNC Computer C Automatic Coil Winder Winding Machine for Wire 0.2-3.0mm

Specification

power voltage:single phase AC 220V  50HZ

Cop motor:three phase machine 750W(1/2hp)

winding displacement machine:step-servo motor

Brand:LY

Spindle motor: Brushless DC

Numbers of cop:1

Windable wire gage:0.2-3.0mm

Maximum winding width:110mm

Maximum screw diameter:300mm

Maximum turning speed of cop:1500circles/minute,speed adjust function

Storable winding groups:999 groups

Counting resolution:0.1 circle

Complete appliance weight:48kg

Size:530*500*400mm

LY 820 CNC Automatic Coil Winder Winding Machine Wire 0.2 3.0mm Feature

1.This series of automatic filament winder computer controller adopts the latest synchronous winding , it is with high precision and there will be no obstacles appear when in excessive speed winding displacement process .

2.Super elevated wisdom model , it has self-inspecting functions, including the errors of the equipments ,excessive speed tracking and the calibration of the speed.

3.Has vernier caliper functions and can measure the winding width and starting point easily.

4.The speed of the cop motor can be changed at random when in operation , and the strand oscillator  also can synchronize with it.

5.After the startup of the cop motor , the time of speed growing can be changed at random depend on the type of the machines.

6.Obtain winding excessive speed detecting function , and it can reduce the winding speed automatically to the most steady state.

7.Can settle data: starting point, wire gage, winding displacement width, circles, speed of starting the winding , stopping slow-speed, winding speed, slow lathe speed , winding displacement direction , winding direction , two-terminal stopping , automatic reset, automatic start (job-hopping winding)

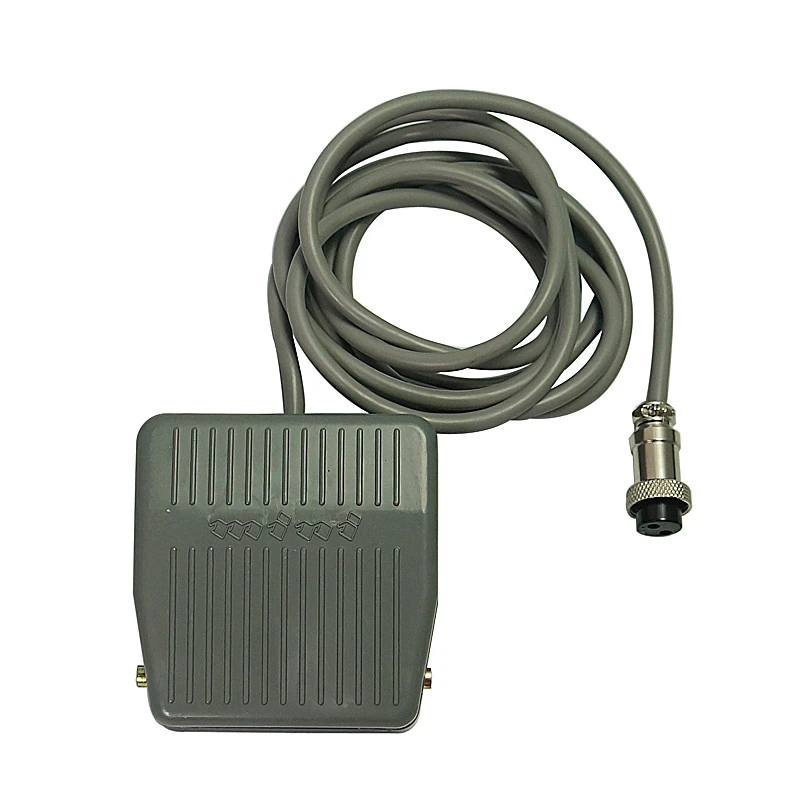

8.Foot-switch connection for better efficiency.

9.Winding parameters and options can be set independently for each step.

10.Memory capacity accommodates 999 steps of parameters with off-power memory retention.

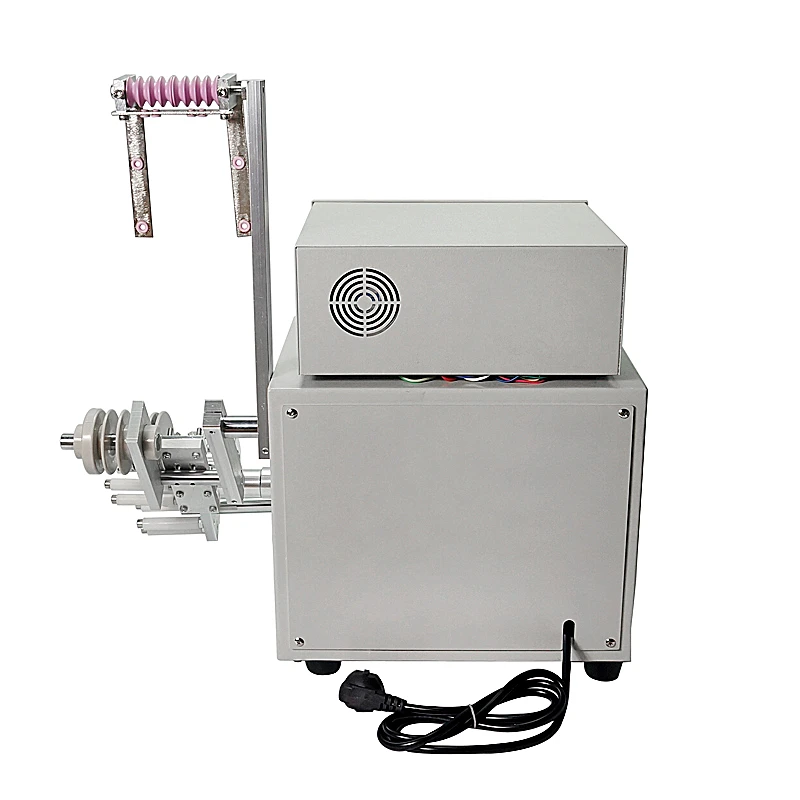

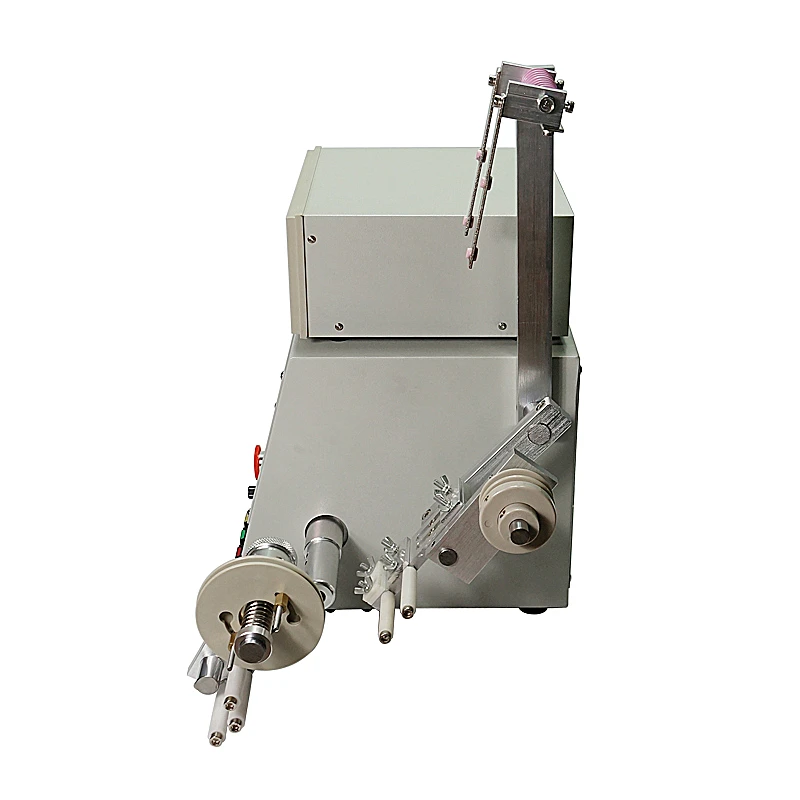

Item pictures

PRODUCT DETAILS

Item specifics

• DIY Supplies:Electrical
• Model Number:LY 820
• Package:Box
• Type:Combination
• Application:Computer Tool Kit
• Spindle motor:Brushless DC
• Windable wire gage:0.2-3.0mm
• Maximum winding width:110mm
• Maximum screw diameter:300mm
• Maximum turning speed of cop:1500circles/minute
• Storable winding groups:999 groups
• Counting resolution:0.1 circle
• Size:530*500*400mm
• Cop motor:three phase machine 750W(1/2hp)
